lsaw steel pipe/ galvanized steel pipe

Place of Origin : Cangzhou, China (Mainland)

Packaging Details : The pipe can be packed in bundles with several steel strips, Two tags on each bundle, Wrapped in waterproof paper

Contact Now

Main details

Standard:	GB/T3091 – 2001, BS1387 – 1985, DIN EN10025, EN10219, JIS G3444:2004, ASTM A53, ASTM A53: GR. A , GR. B,
Zinc Coating	275 – 600g /m2
Steel Grade:	Q195, Q235, Q345, S235, S235JR, S355JR.STK400 /500.
Packing:	The pipe can be packed in bundles with several steel strips, Two tags on each bundle, Wrapped in waterproof paper
Test:	Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test. Third party inspection:SGS, BV, Lloyds etc.
Usage:	Used for low pressure liquid delivery, such as water, gas, and oil; it can also be used to make fence, greenhouse and other structures.

Material Quality of galvanized pipe

Elements	Chemical Composition%					Mechanical Property
Material	C%	Mn%	S%	P%	Si%	Yield Point	Tensile Strength	Elongation
	C%	Mn%	S%	P%	Si%	(Mpa)	(Mpa)	(%)
Q195	0.06-0.12	0.25-0.50	<0.050	<0.045	<0.30	>195	315-430	32-33
Q215	0.09-0.15	0.25-0.55	<0.050	<0.045	<0.30	>215	335-450	26-31
Q235	0.12-0.20	0.30-0.70	<0.045	<0.045	<0.30	>235	375-500	24-26
Q345	<0.20	1.0-1.6	<0.040	<0.040	<0.55	>345	470-630	21-22

Size of our pipe

Outer Diameter		Wall Thickness	Length
Inch	mm	mm	meter
1/2"	21.3mm	0.6mm-3.0mm	0.3m-12m
3/4"	26.9mm	0.6mm-3.0mm	0.3m-12m
1"	33.4mm	1.0mm-3.0mm	0.3m-12m
1-1/4"	42.3mm	1.0mm-4.0mm	0.3m-12m
1-1/2"	48.3mm	1.0mm-4.0mm	0.3m-12m
2"	60.3mm	1.5mm-4.0mm	0.3m-12m
2-1/2"	76.1mm	1.5mm-4.0mm	0.3m-12m
3"	88.9mm	1.5mm-9.5mm	0.3m-12m
4"	114.3mm	2.0mm-9.5mm	0.3m-12m
5"	141.3mm	3.0mm-9.5mm	0.3m-12m
6"	168.3mm	3.0mm-12.0mm	1.0m-12m
8"	219.1mm	3.2mm-12.0mm	1.0m-12m
10"	273mm	3.2mm-12.0mm	1.0m-12m
12"	323.8mm	6.0mm-15.0mm	1.0m-12m
14"	355.6mm	8.0mm-15.0mm	1.0m-12m
16"	406.4mm	8.0mm-20.0mm	1.0m-12m

Products

FAQ
1. How to buy your ideal products?
A: You can provide us your drawing, and we will produce as your drawing. Or we can design as your requirements if you do not have a clear plan.
2. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.
30% deposit before producing, 70% balance before loading by TT.
3. What is the delivery time?
A: It depends on order quantity.
Generally, the delivery time will be within 12 to 15 days.
4. How to install after the goods destination?
A: We will provide installation instruction and video for you. Technicians will be sent to help you if it is necessary. However, the visa fee, air tickets, accommodation, wages will be provided by buyers.

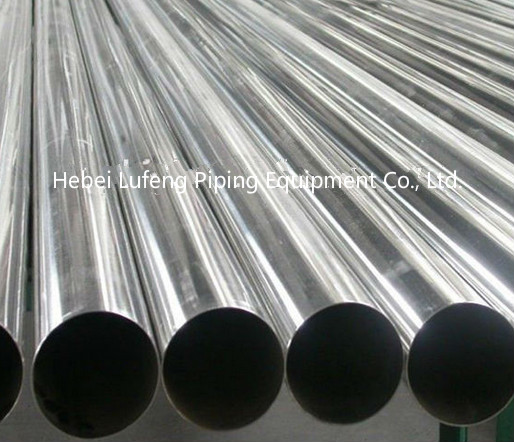

lsaw steel pipe/ galvanized steel pipe Images
