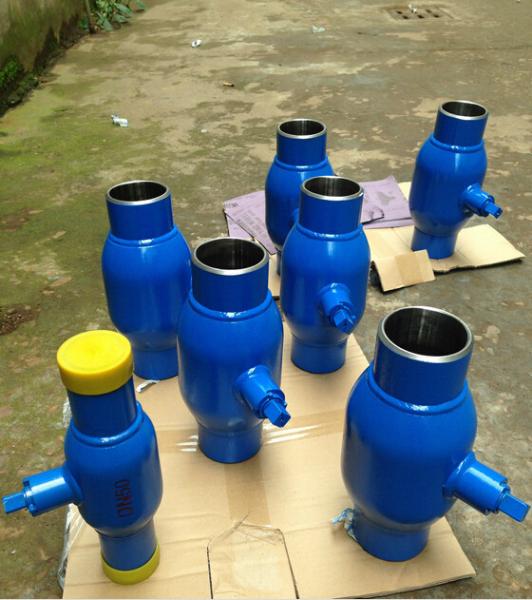

Fully Welded Ball Valve Manufacturer Landee supplies Fully Welded
Ball Valves with Flanged and Butt-welded Connection, trunnion
mounted ball type, , Available in Size of 1/2 to 36-inch.
Key Specifications / Features
Ball Valve type: trunnion mounted ball
Valve Body materials: A105, LF2, F11, F22, F304, F304L, F316 and
Manufacturing standards: API, ANSI, BS, DIN and JIS
Pressure: ANSI class 150 to 2500 (PN1.6 to 42MPa)
Applicable temperature: -196 to 650 degrees Celsius
Connection: flanged and butt-welded
Valve Size range: 1/2 to 36 inches (15 to DN900mm)
Products Related to Fully Welded Ball Valves
reduced fully welded ball valves
Flange full welded ball valve is specially developed according to
user requirements; flange full welded ball valve, can be single
welding, and it can be on the other side in the flange connection
on the other side.
The design of single flange full welded ball valve is piping
installation after other valves, which cannot be directly installed
all welded ball valve. According to this situation, our factory do
the research on the single flange full welded ball valve.The end of
the flange can be connected with other valves, or connected with
pipe flange; and the other end is connected in welding way, which
is convenient to replace the valve flange end.
The structure and design:
flange full welded ball valve is completely designed and
manufactured according to the API6D to prevent anti-static and
fire. Stem is extended according to the requirements of customers;
the body sphere of metal parts are all made of forging high quality
materials, to guarantee the quality of the ball valve and
intensity. The sphere is fixed with stuffing box or support plate.
Stuffing box or support plate fixed ball can eliminate the force
from medium in the sphere of the bending moment on the valve stem,
so the stem withstand torque. It makes valve movements smooth,
switching torque small, and easy to operate. Seal is adopted the
unique two soft seal and metal sealing which is formed three
sealing. It ensures reliable sealing and the security. It has the
advantage of long operating life, and free of maintenance.
In order to make a very quick offer and saving your waiting time,
It's better to fill the information below. Copy and send us the
information together with the enquiry.
Its better to send us a drawing, a sketch or show us datas and then
our Engineer can work out a full suitable solution just for yours.
City gas: gas output pipeline, the trunk and the regional supply,
Central heating: large heating equipment output pipeline, trunk and
Heat exchangers: piping and the opening and closing of each
Steel mills: all kinds of fluid pipes, exhaust pipes, gas, and the
heat supply, fuel supply line.
All kinds of industrial equipment: all kinds of pipes, all kinds of
industrial gas and heat pipe heat treatment.
We invest 200 million yuan to introduce two Japan casting automatic
production lines and five China-made semi-automatic casting
production lines which has formed our unique advantage, it was
unprecedented in the same industry.
